5 Functions Electric Hospital Beds,medical Beds And Patient Beds With High Quality

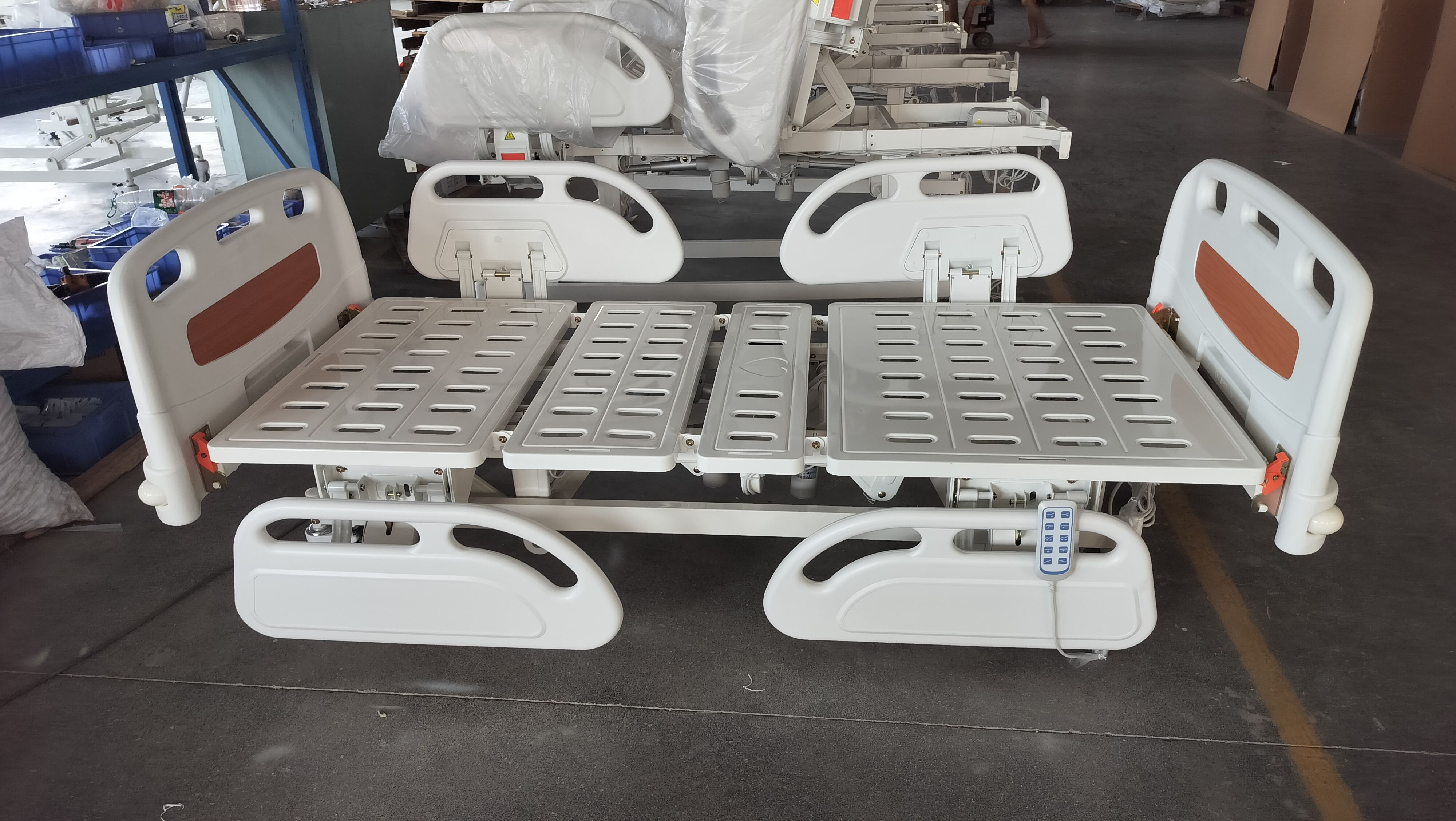

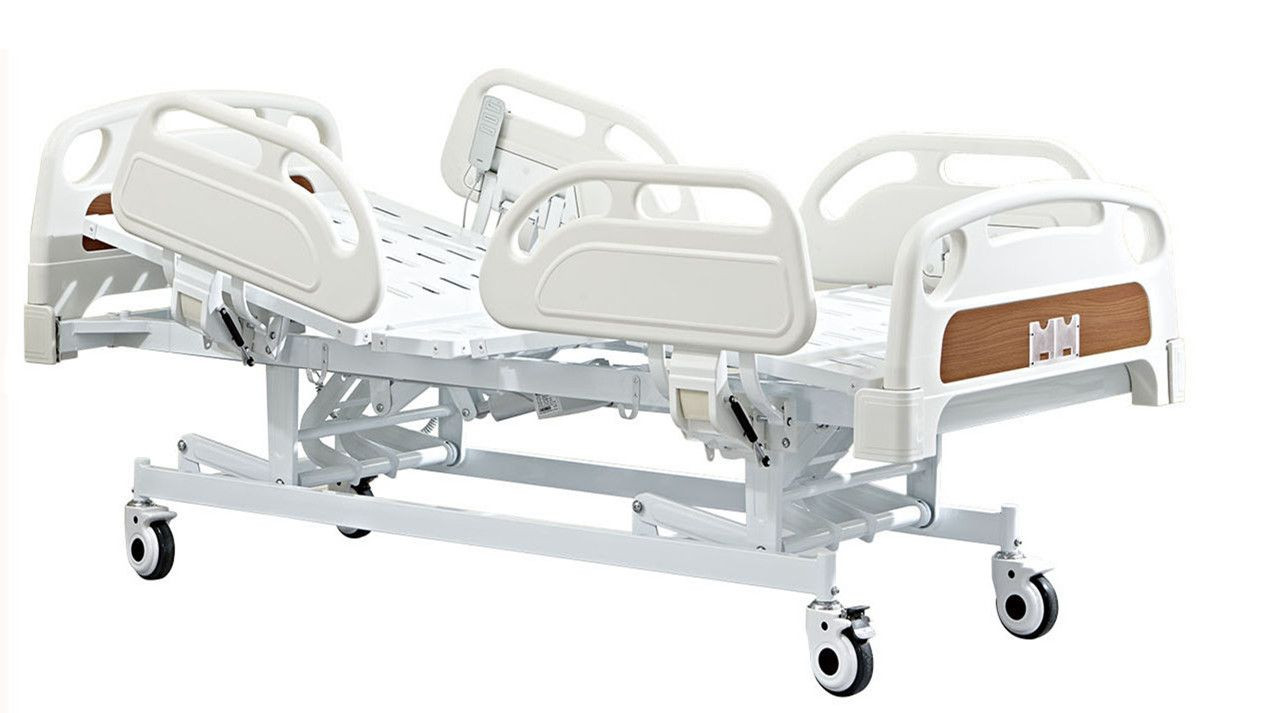

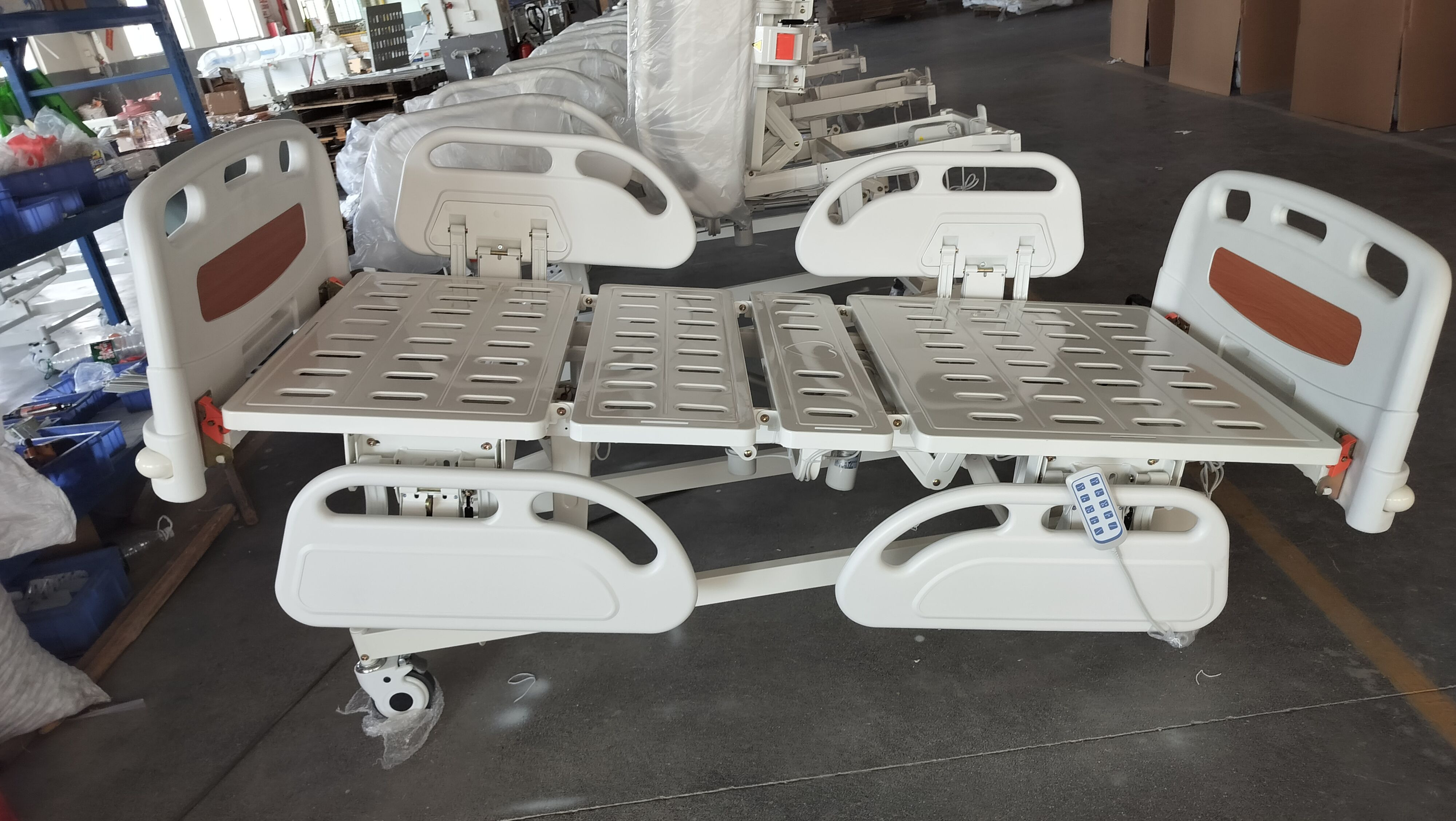

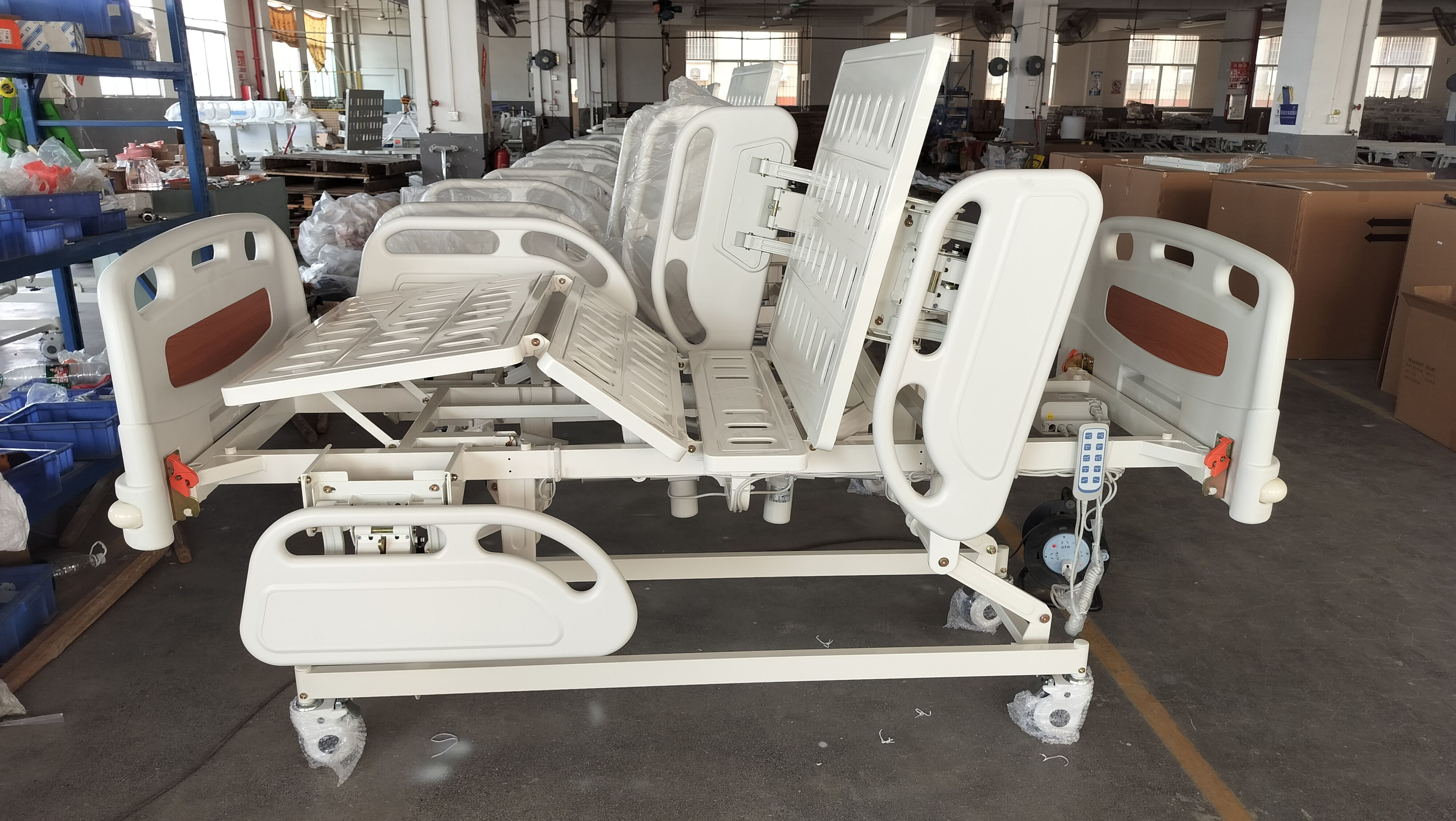

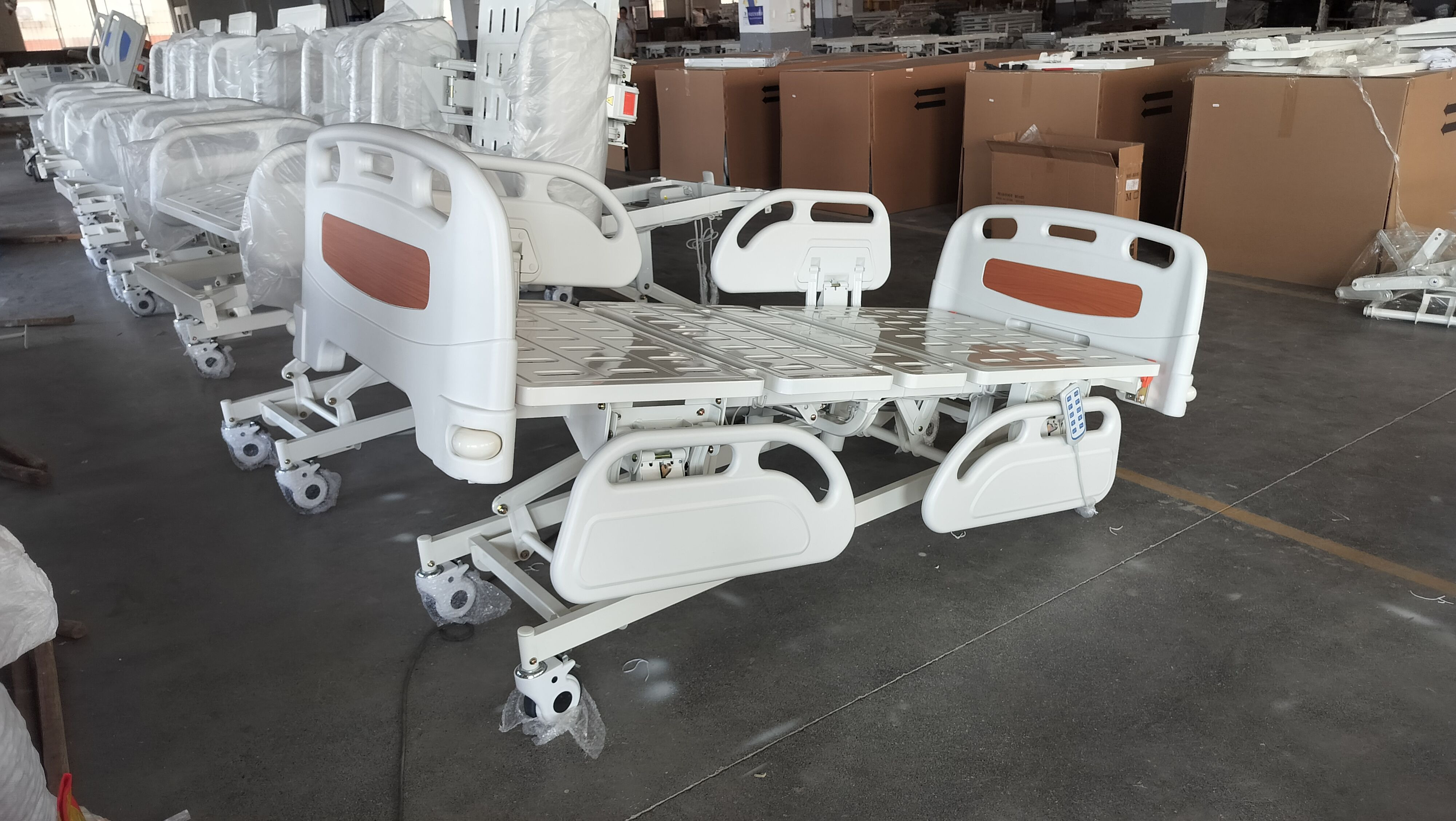

Five Functions Electric Hospital Beds

Main functions:

A:Back section up/down;

B:Knee section up/down;

C:Whole bed up/dwon;

D:Trendelenburg and Reverse Trendelenburg;

Related parameters:

Overall dimension:L2160×W1000×H(420-720)±10mm;

Back rest tilting:75°±5°;

Knee board tilting:35°±5°;

Hi-lo adjustment between:(420-720)±10mm;

Reverse and trendelenburg:13°±2°;

Standard configuration:

4 pcs advanced medical actuators,

1 pc control box,

1pc handset;

Central-controlled brake system,

4 pcs luxurious central locking castors;

1 pair plastic head/foot-end boards;

1 set plastic siderails;

4 pcs urine hooks;

1 pc SS IVpole;
